Product Category
Panoramic & Blind-Spot Detection (BSD) Cameras
Panoramic and blind-spot detection (BSD) cameras reveal the zones a commercial vehicle driver cannot see, from the sides and rear to a full 360° bird’s-eye view. YUNTOR builds them on automotive-grade, wide-temperature housings with AHD output that drops into your existing monitor.
What is a panoramic & BSD camera?
Blind-spot detection (BSD) cameras mount on the sides or rear of a commercial vehicle to reveal the zones a driver cannot see, triggering alerts before collisions. YUNTOR panoramic and BSD cameras cover side blind zones and full 360° views on automotive-grade housings, AHD-compatible and customizable from low MOQ.
Models in this category
BSD blind-spot detection cameras
HD blind-spot dome cameras (side-mounted & compact dome)
Panoramic vehicle camera
-
X105 Request Quote →
Full-HD general vehicle camera
HD panoramic camera (side & rear)
BSD blind-spot detection cameras
HD blind-spot dome cameras (side-mounted & compact dome)
Panoramic vehicle camera
Full-HD general vehicle camera
HD panoramic camera (side & rear)
BSD blind-spot detection cameras
Addresses: blind zones, low-light visibility, compliance requirements

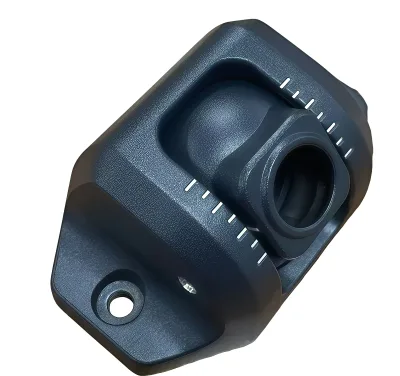

HD blind-spot dome cameras (side-mounted & compact dome)
Addresses: blind zones, low-light visibility, compliance requirements
Panoramic vehicle camera
Addresses: blind zones, low-light visibility, compliance requirements
Full-HD general vehicle camera
Addresses: blind zones, low-light visibility, compliance requirements
HD panoramic camera (side & rear)
Addresses: blind zones, low-light visibility, compliance requirements
Featured products
-

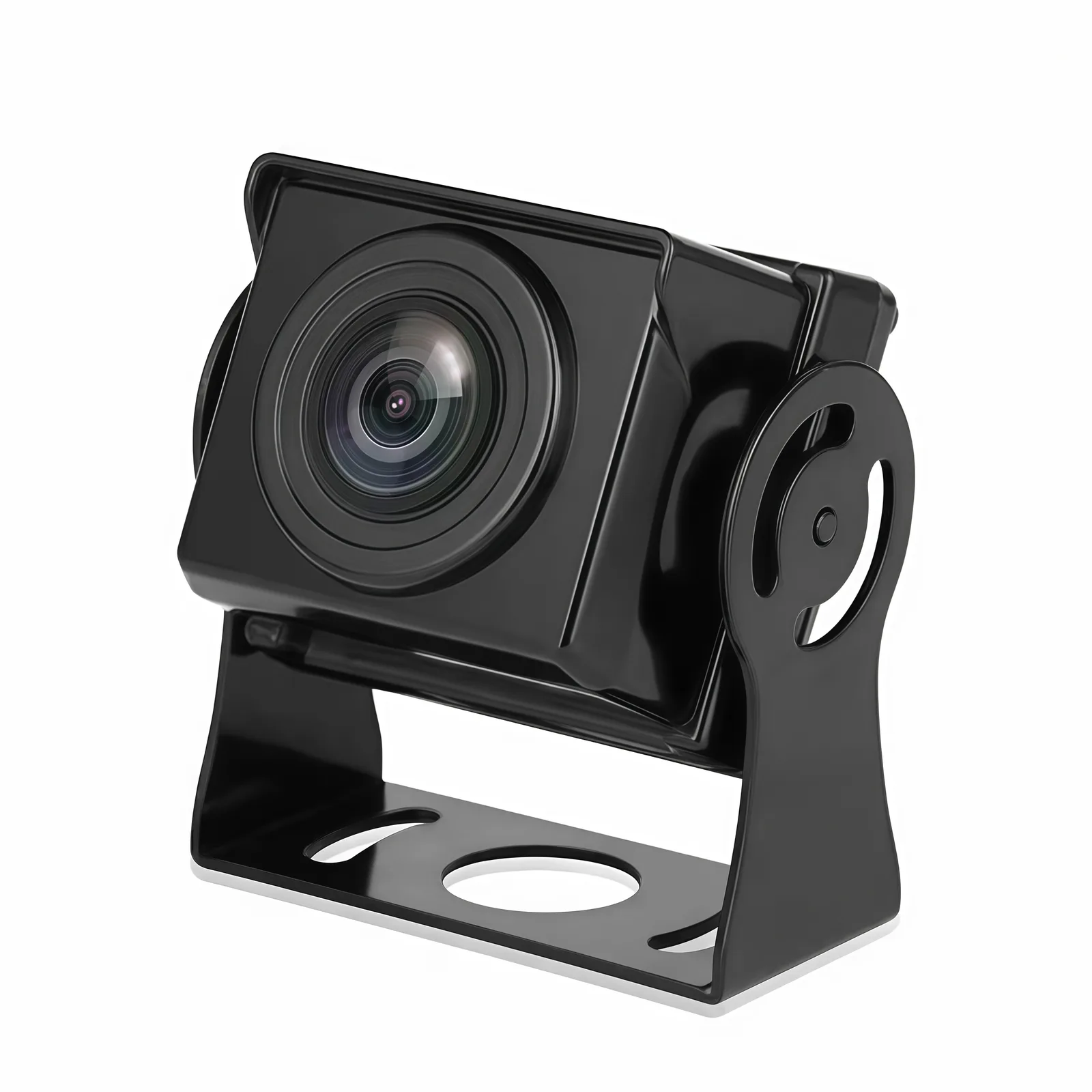

X037 FeaturedX037 BSD Blind-Spot Detection Camera
Full BSD camera revealing side blind zones for 360° surround coverage.
Model: X037 · Resolution: 1920×1080 · Frame Rate: 25 fps
View Details -

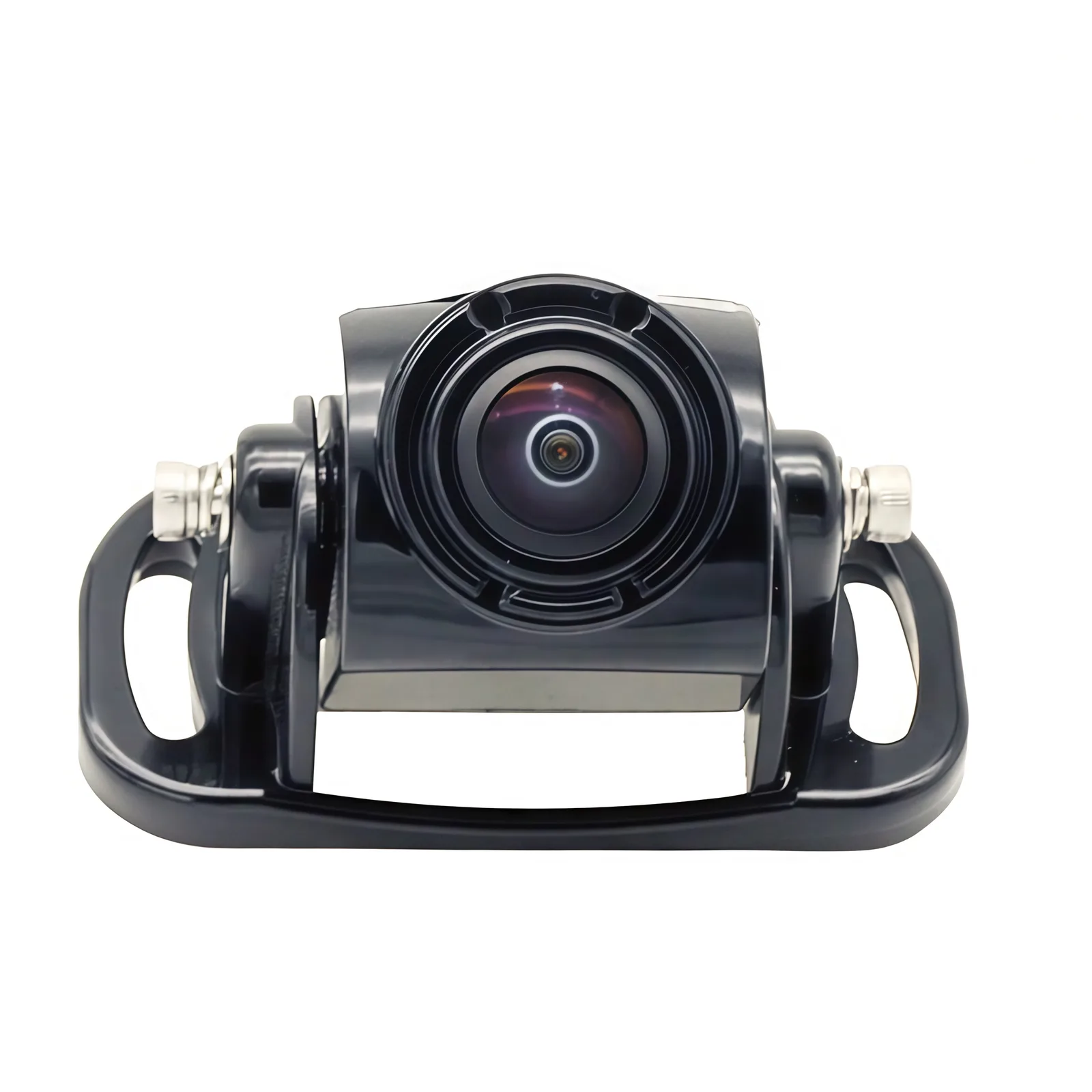

X084 FeaturedX084 BSD Blind-Spot Camera
Compact BSD camera for blind-spot monitoring on commercial fleets.
Model: X084 · Voltage: DC 12V · Waterproof: IP68
View Details
Compare Panoramic & BSD Cameras models
Select up to 4 models to focus the comparison — or view the full matrix below.
| Select to compare | Model | Resolution | Frame Rate | Lens | Interface | Voltage | Night Vision |
|---|---|---|---|---|---|---|---|
| X037 | 1920 x 1080 | 25 | 3.6mm | AHD | 12V | — | |
| X084 | 1920 x 1080 | 25 | 1.5mm | AHD | 12V | — | |
| X149 | 2.0M | 25 | 1.32mm | AHD | 12V ± 10% | IR | |
| X108 | 2.0M | 25 | 1.32mm | AHD | 12V ± 10% | IR | |
| X105 | — | — | — | — | — | — | |
| X099 | 1920 x 1080 | 25 | 3.6mm | AHD | 12V | — | |
| X901 | 2.0M | 25 | 1.32mm | AHD | 12V ± 10% | IR |
Parameters verified from official spec sheets. A dash (—) marks a parameter not published in the datasheet — contact our engineer for the full datasheet.
How to choose panoramic & BSD cameras
Pick the camera by its job
Choose BSD cameras (X037, X084) for blind-spot coverage on the sides, HD dome cameras (X149, X108) for compact side and rear mounts, and panoramic models (X105, X099, X901) for wide-coverage views.
Match the field of view to the mounting point
Side-mounted BSD cameras cover the blind zone beside the cab; rear and top mounts suit panoramic views. Confirm the mounting point and required angle with our engineer.
Confirm output compatibility
All YUNTOR panoramic and BSD cameras are AHD-compatible, so they connect to most existing monitors, recorders and 360° AVM hosts without replacing your display.
Check housing for the environment
Cameras use automotive-grade, wide-temperature, anti-vibration housings for harsh operating conditions — confirm your mounting and operating environment with our engineer before ordering.
Related industry solutions
-
Fleet Management
YUNTOR fleet management solutions combine 360° surround view, driver monitoring (DMS) and blind-spot detection (BSD) with 4G dual-channel recording — reducing accidents and giving logistics operators real-time visibility across long-haul fleets.
Explore Fleet Management → -
Commercial Vehicles
YUNTOR commercial vehicle solutions bring together the full product line — 360° AVM, DMS/ADAS, BSD cameras and 4G recorders — into configurable safety packages for general commercial fleets, direct from a source factory.
Explore Commercial Vehicles →
Panoramic & BSD Cameras — common questions
What is blind spot detection (BSD)?
Blind-spot detection uses side and rear cameras to cover the zones a driver cannot see directly, warning of pedestrians, cyclists or vehicles before a turn or lane change reduces collision risk on large vehicles.
Are the cameras compatible with my existing display?
Yes. YUNTOR panoramic and BSD cameras are AHD-compatible, so they connect to most existing commercial-vehicle monitors and recorders without replacing your display.
Do panoramic cameras support a full 360° view?
Yes. Combined with a 360° AVM host, YUNTOR panoramic camera sets produce a bird’s-eye view of the whole vehicle, helping drivers maneuver in tight yards and loading docks.
Compliance at a glance
Verified from official spec sheets across the Panoramic & BSD Cameras range.
- Night Vision IR
Need the full documentation for a specific model? Request the official certificate or test report from our engineer — verified documents, not marketing claims.
Technical Documentation Pack
Download the complete technical documentation package for the Panoramic & BSD Cameras range — datasheets, installation guides, wiring diagrams and compliance certificates in one ZIP.
Panoramic & BSD Cameras — Full Documentation Pack
- Product datasheets (PDF, all models)
- Installation & mounting guides
- Wiring diagrams & pinouts
- Compliance certificates (CE, E-Mark, IP ratings)
- Multi-language versions (EN/DE/ES/FR/RU)
Choose by engineering task
Find the right panoramic & bsd cameras configuration
Engineers, fleet operators and procurement teams do not research the same way. Choose the route closest to your task and keep the technical context through to the RFQ.
Need a custom panoramic & BSD cameras build?
Talk directly to our lead engineer for factory-direct pricing, custom specs and a prototype timeline.
