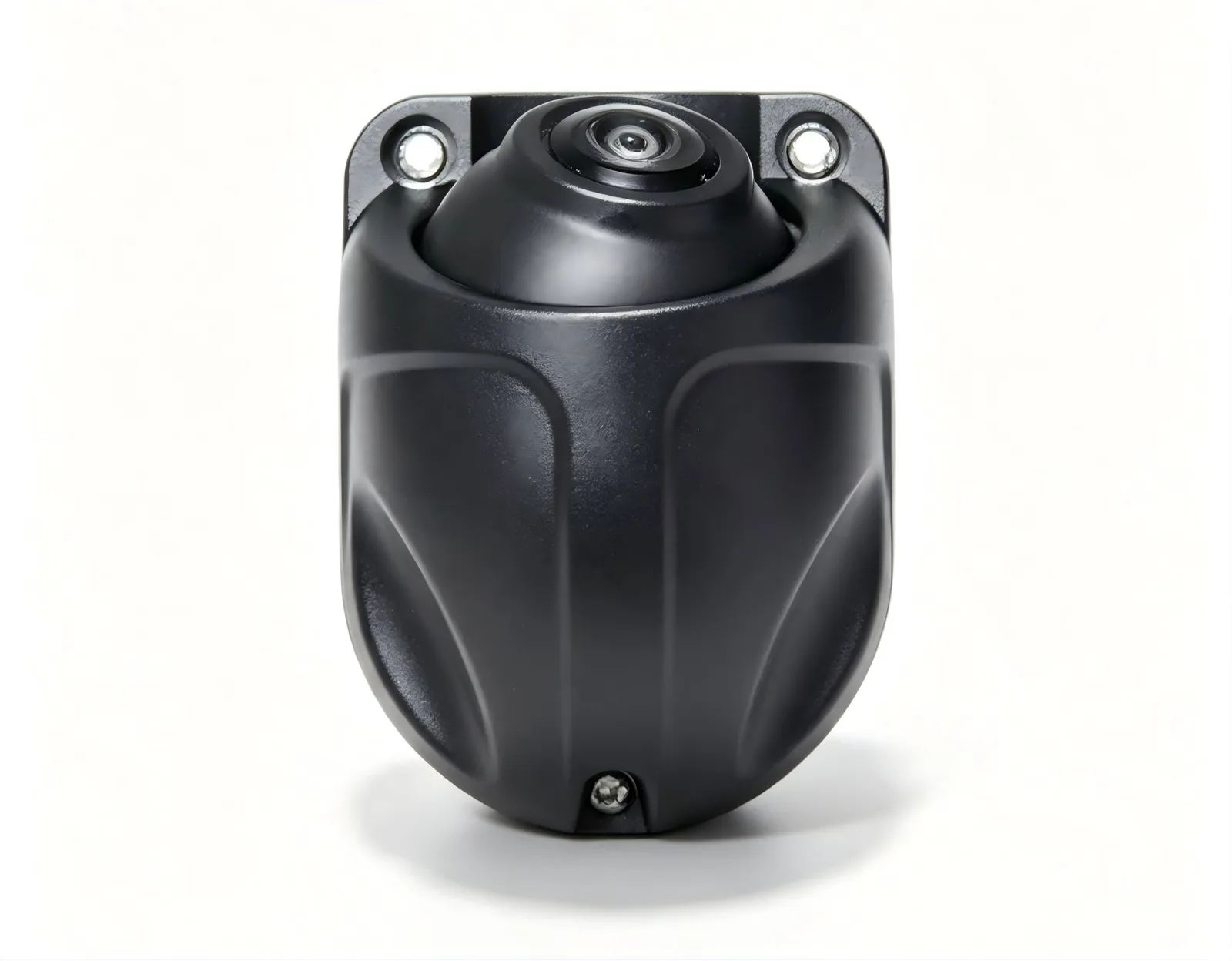

X149 HD blind-spot dome camera
HD blind-spot dome camera. Resolution 2.0M, frame rate 25 fps.
X149 HD blind-spot dome camera at a glance
HD blind-spot dome camera. Resolution 2.0M, frame rate 25 fps.
- Resolution
- 2.0M
- Frame Rate
- 25
- Lens
- 1.32mm
- Interface
- AHD
- Voltage
- 12V ± 10%
- Night Vision
- IR
Direct line to our Shenzhen factory engineer — MOQ, lead time and integration confirmed against your application.
- Night Vision IR
- MOQ Low MOQ (OEM/ODM)
- Lead Time Engineer-confirmed lead times
- Warranty Replacement warranty
X149 HD blind-spot dome camera specifications & downloads
The X149 HD blind-spot dome camera is built for revealing side blind zones and full 360° surround views on commercial vehicles. It offers resolution 2.0M, frame rate 25 fps, lens 1.32mm, interface AHD, voltage 12V ± 10%, night vision IR, verified from the official spec sheet. As a source factory, YUNTOR customizes this model at low MOQ with OEM/ODM branding on self-developed hardware. Contact our engineer for the complete datasheet and application notes.
- Resolution: 2.0M
- Frame Rate: 25 fps
- Lens: 1.32mm
- Interface: AHD
| Model | X149 |
|---|---|
| Type | HD blind-spot dome cameras (side-mounted & compact dome) |
| Resolution | 2.0M |
| Frame Rate | 25 fps |
| Lens | 1.32mm |
| Interface | AHD |
| Voltage | 12V ± 10% |
| Night Vision | IR |
| MOQ | Low MOQ (OEM/ODM) — contact for current terms |
| Lead Time | Contact our engineer for current lead times |
| Warranty | Replacement warranty — contact for current terms |
Need the full X149 specification sheet, drawings or integration notes? Our engineer sends the complete datasheet on request — no lengthy forms.
Where X149 fits in your fleet — verified application scenarios from our industry solutions.
Typical Installation Layout
Reference mounting positions for X149 — actual installation varies by vehicle.
- Primary cameras (AVM/BSD)
- Auxiliary cameras (DMS/reversing)
Simplified Wiring Schematic
Typical X149 integration — consult installation manual for vehicle-specific pinouts.
Key connections: Camera → ECU (video + power) → Monitor (video out) → Power (fused 12/24V).
4G antenna, GPS, and trigger wires (reverse/turn) connect to ECU per vehicle harness.
Vehicle Fitment Guide
Typical vehicle classes compatible with X149 — verify dimensions and voltage before ordering.
| Vehicle Class | Typical Models | Mounting Position | Voltage |
|---|---|---|---|
| Heavy Truck (N3) | Tractor units, dump trucks, concrete mixers | Front grille, side mirrors, rear bumper | 24V DC |
| Medium Truck (N2) | Box trucks, refrigerated trucks, flatbeds | Front, sides, rear corners | 24V DC |
| Light Commercial (N1) | Vans, pickups, chassis cabs | Front grille, rear license plate area | 12V DC |
| Bus & Coach (M3) | City buses, intercity coaches, school buses | Front, side doors, rear, interior | 24V DC |
| Construction Machinery | Excavators, loaders, dumpers, cranes | Cab roof, boom, rear counterweight | 12-24V DC |
Note: This is a general guide. Actual fitment depends on vehicle year, body style, and existing equipment. Contact our engineer with your VIN or vehicle specs for confirmed compatibility.
-
Fleet Management
A fleet management camera system combines 360° surround view, blind-spot detection and driver monitoring with 4G dual-channel recording, so operators cut side-swipe and reversing accidents while tracking vehicle location and driver behavior in real time. YUNTOR configures cameras, hosts and 4G terminals per vehicle type at low MOQ on self-developed boards.
-
Commercial Vehicles
A commercial vehicle safety solution combines 360° AVM, DMS/ADAS, BSD cameras and 4G recorders into one configurable package from a single source factory, letting mixed fleets standardize on one trusted supplier with low-MOQ customization. YUNTOR designs its own PCBs and firmware, so custom branding, housing and protocols avoid the high MOQs of large suppliers.
Related products
- X037 BSD Blind-Spot Detection Camera Full BSD camera revealing side blind zones for 360° surround coverage. View →
- X084 BSD Blind-Spot Camera Compact BSD camera for blind-spot monitoring on commercial fleets. View →
- X099 Full-HD general vehicle camera Full-HD general vehicle camera. Resolution 1920 x 1080, frame rate 25 fps. View →
- X108 HD blind-spot dome camera HD blind-spot dome camera. Resolution 2.0M, frame rate 25 fps. View →
Related industry solutions
-
Fleet Management
YUNTOR fleet management solutions combine 360° surround view, driver monitoring (DMS) and blind-spot detection (BSD) with 4G dual-channel recording — reducing accidents and giving logistics operators real-time visibility across long-haul fleets.
Explore Fleet Management → -
Commercial Vehicles
YUNTOR commercial vehicle solutions bring together the full product line — 360° AVM, DMS/ADAS, BSD cameras and 4G recorders — into configurable safety packages for general commercial fleets, direct from a source factory.
Explore Commercial Vehicles →
X149 — buyer questions
What is the X149 used for?
The X149 HD blind-spot dome camera is part of the Panoramic & BSD Cameras range for commercial vehicles. It is built and tested by YUNTOR as a source factory.
What are the key specifications of the X149?
The X149 offers resolution 2.0M, frame rate 25 fps, lens 1.32mm, interface AHD, voltage 12V ± 10%, night vision IR, verified from the official spec sheet. For the complete specification table, contact our engineer.
What is the MOQ for the X149?
Custom orders run at a low MOQ for OEM/ODM, with private branding available on our self-developed hardware — contact our engineer for current terms.
How fast is prototyping and delivery for the X149?
Lead times depend on configuration and current production load — our engineer confirms a schedule when you send your specifications.
Is the X149 covered by warranty?
Every unit carries a replacement warranty, with faulty units replaced directly. Contact us for current warranty terms.
Talk to our factory engineer about the X149
Confirm MOQ, lead time, datasheet and integration against your application — answered directly by our Shenzhen factory engineer.
