360° AVM Systems

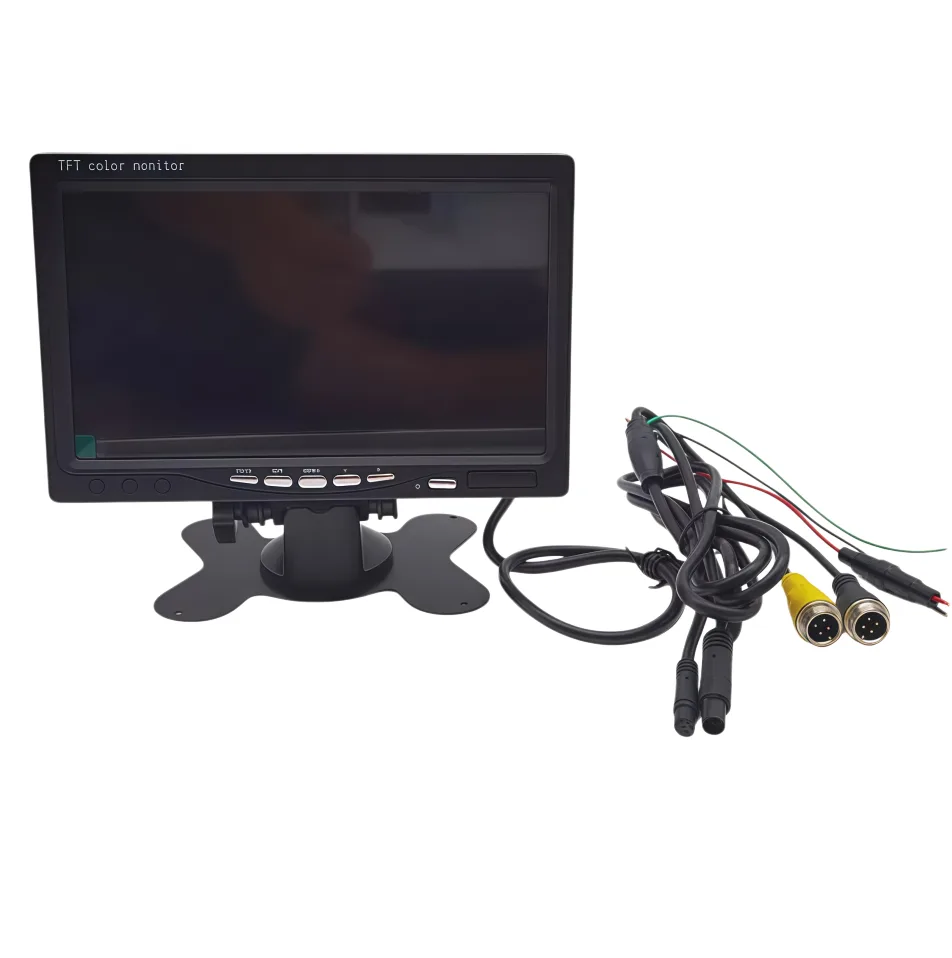

FB8005 360° AVM All-in-One
360° surround-view system eliminating blind zones around commercial vehicles.
FB8005 360° AVM All-in-One at a glance
360° surround-view system eliminating blind zones around commercial vehicles.
- Resolution
- 1024x600
- Frame Rate
- 25
- Interface
- CVBS
- Voltage
- 12V
Direct line to our Shenzhen factory engineer — MOQ, lead time and integration confirmed against your application.
- Waterproof IP68
FB8005 360° AVM All-in-One specifications & downloads
The FB8005 360° AVM all-in-one is built for eliminating blind zones around commercial vehicles with full-surround monitoring.
- 360° surround view
- IP68 waterproof
- All-in-one design
- Commercial vehicles
| Model | FB8005 |
|---|---|
| Type | 360° AVM all-in-one |
| Resolution | 1024×600 |
| Frame Rate | 25 fps |
| Interface | CVBS |
| Voltage | DC 12V |
| Waterproof | IP68 |
Need the full FB8005 specification sheet, drawings or integration notes? Our engineer sends the complete datasheet on request — no lengthy forms.
Where FB8005 fits in your fleet — verified application scenarios from our industry solutions.
Typical Installation Layout
Reference mounting positions for FB8005 — actual installation varies by vehicle.
- Primary cameras (AVM/BSD)
- Auxiliary cameras (DMS/reversing)
Simplified Wiring Schematic
Typical FB8005 integration — consult installation manual for vehicle-specific pinouts.
Key connections: Camera → ECU (video + power) → Monitor (video out) → Power (fused 12/24V).
4G antenna, GPS, and trigger wires (reverse/turn) connect to ECU per vehicle harness.
Vehicle Fitment Guide
Typical vehicle classes compatible with FB8005 — verify dimensions and voltage before ordering.
| Vehicle Class | Typical Models | Mounting Position | Voltage |
|---|---|---|---|
| Heavy Truck (N3) | Tractor units, dump trucks, concrete mixers | Front grille, side mirrors, rear bumper | 24V DC |
| Medium Truck (N2) | Box trucks, refrigerated trucks, flatbeds | Front, sides, rear corners | 24V DC |
| Light Commercial (N1) | Vans, pickups, chassis cabs | Front grille, rear license plate area | 12V DC |
| Bus & Coach (M3) | City buses, intercity coaches, school buses | Front, side doors, rear, interior | 24V DC |
| Construction Machinery | Excavators, loaders, dumpers, cranes | Cab roof, boom, rear counterweight | 12-24V DC |
Note: This is a general guide. Actual fitment depends on vehicle year, body style, and existing equipment. Contact our engineer with your VIN or vehicle specs for confirmed compatibility.
-
Fleet Management
A fleet management camera system combines 360° surround view, blind-spot detection and driver monitoring with 4G dual-channel recording, so operators cut side-swipe and reversing accidents while tracking vehicle location and driver behavior in real time. YUNTOR configures cameras, hosts and 4G terminals per vehicle type at low MOQ on self-developed boards.
-
Bus & School Bus
A bus monitoring solution pairs multi-channel surround view with interior passenger cameras and pedestrian-detection alarms, helping passenger and school buses remove exterior blind zones, record interior incidents and meet passenger-transport safety requirements. A six-channel AHD host records exterior and cabin views on one unit.
