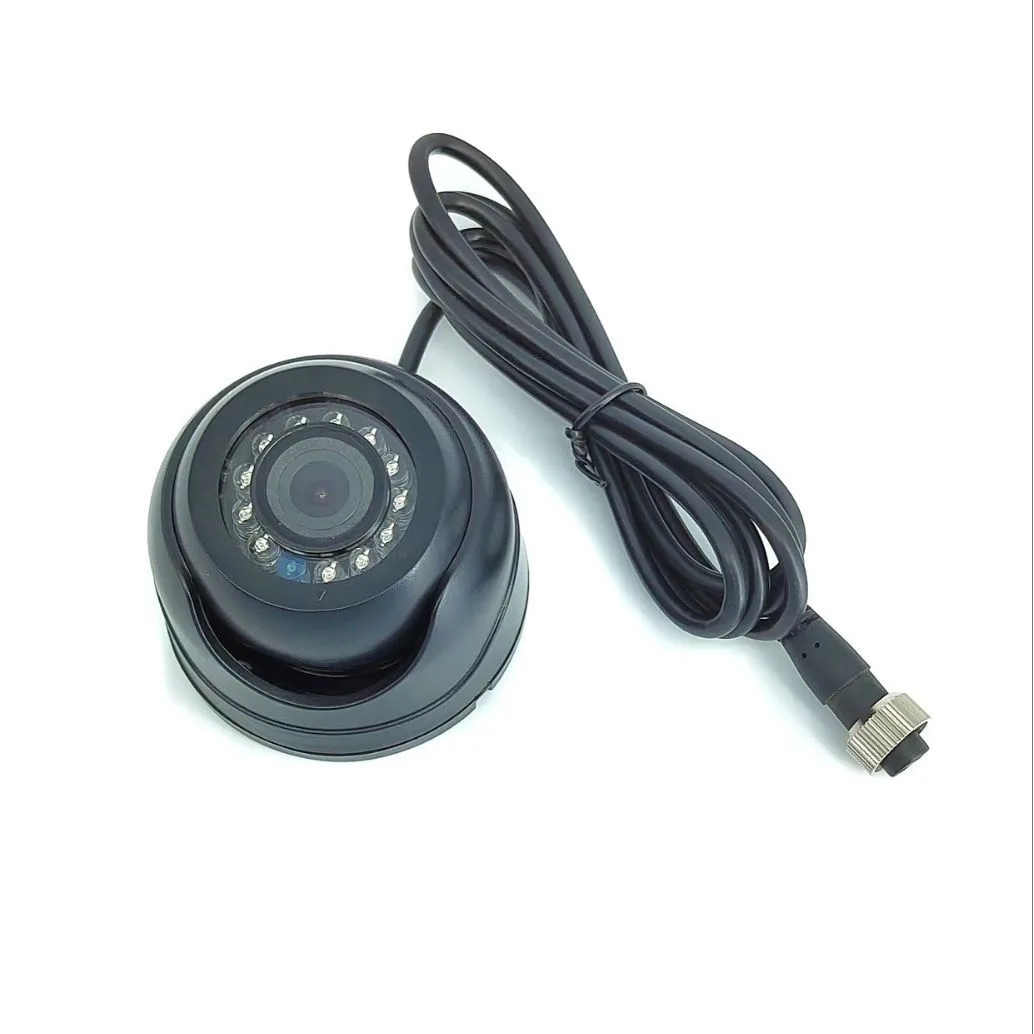

X012 USB reversing camera
USB reversing camera. Resolution 2.0M, frame rate 25 fps.
X012 USB reversing camera at a glance
USB reversing camera. Resolution 2.0M, frame rate 25 fps.
- Resolution
- 2.0M
- Frame Rate
- 25
- Lens
- 2.8mm
- Interface
- USB
- Voltage
- 12V ± 10%
- Night Vision
- IR
Direct line to our Shenzhen factory engineer — MOQ, lead time and integration confirmed against your application.
- Night Vision IR
- MOQ Low MOQ (OEM/ODM)
- Lead Time Engineer-confirmed lead times
- Warranty Replacement warranty
X012 USB reversing camera specifications & downloads
The X012 USB reversing camera is built for providing clear day-and-night views behind trucks, trailers and buses. It offers resolution 2.0M, frame rate 25 fps, lens 2.8mm, interface USB, voltage 12V ± 10%, night vision IR, verified from the official spec sheet. As a source factory, YUNTOR customizes this model at low MOQ with OEM/ODM branding on self-developed hardware. Contact our engineer for the complete datasheet and application notes.
- Resolution: 2.0M
- Frame Rate: 25 fps
- Lens: 2.8mm
- Interface: USB
| Model | X012 |
|---|---|
| Type | USB reversing cameras |
| Resolution | 2.0M |
| Frame Rate | 25 fps |
| Lens | 2.8mm |
| Interface | USB |
| Voltage | 12V ± 10% |
| Night Vision | IR |
| MOQ | Low MOQ (OEM/ODM) — contact for current terms |
| Lead Time | Contact our engineer for current lead times |
| Warranty | Replacement warranty — contact for current terms |
Need the full X012 specification sheet, drawings or integration notes? Our engineer sends the complete datasheet on request — no lengthy forms.
Where X012 fits in your fleet — verified application scenarios from our industry solutions.
Typical Installation Layout
Reference mounting positions for X012 — actual installation varies by vehicle.
- Primary cameras (AVM/BSD)
- Auxiliary cameras (DMS/reversing)
Simplified Wiring Schematic
Typical X012 integration — consult installation manual for vehicle-specific pinouts.
Key connections: Camera → ECU (video + power) → Monitor (video out) → Power (fused 12/24V).
4G antenna, GPS, and trigger wires (reverse/turn) connect to ECU per vehicle harness.
Vehicle Fitment Guide
Typical vehicle classes compatible with X012 — verify dimensions and voltage before ordering.
| Vehicle Class | Typical Models | Mounting Position | Voltage |
|---|---|---|---|
| Heavy Truck (N3) | Tractor units, dump trucks, concrete mixers | Front grille, side mirrors, rear bumper | 24V DC |
| Medium Truck (N2) | Box trucks, refrigerated trucks, flatbeds | Front, sides, rear corners | 24V DC |
| Light Commercial (N1) | Vans, pickups, chassis cabs | Front grille, rear license plate area | 12V DC |
| Bus & Coach (M3) | City buses, intercity coaches, school buses | Front, side doors, rear, interior | 24V DC |
| Construction Machinery | Excavators, loaders, dumpers, cranes | Cab roof, boom, rear counterweight | 12-24V DC |
Note: This is a general guide. Actual fitment depends on vehicle year, body style, and existing equipment. Contact our engineer with your VIN or vehicle specs for confirmed compatibility.
-
Fleet Management
A fleet management camera system combines 360° surround view, blind-spot detection and driver monitoring with 4G dual-channel recording, so operators cut side-swipe and reversing accidents while tracking vehicle location and driver behavior in real time. YUNTOR configures cameras, hosts and 4G terminals per vehicle type at low MOQ on self-developed boards.
-
Commercial Vehicles
A commercial vehicle safety solution combines 360° AVM, DMS/ADAS, BSD cameras and 4G recorders into one configurable package from a single source factory, letting mixed fleets standardize on one trusted supplier with low-MOQ customization. YUNTOR designs its own PCBs and firmware, so custom branding, housing and protocols avoid the high MOQs of large suppliers.
Related products
- X067 Waterproof infrared reversing camera Waterproof infrared reversing camera. Interface AHD, voltage 12V. View →
- X068 Infrared reversing camera Infrared reversing camera. Resolution 2.0M, frame rate 30 fps. View →
- X069 Infrared reversing camera Infrared reversing camera. Resolution 1280 × 720, lens 4mm. View →
- X070 USB reversing camera USB reversing camera. Resolution 2.0M, frame rate 25 fps. View →
Related industry solutions
-
Fleet Management
YUNTOR fleet management solutions combine 360° surround view, driver monitoring (DMS) and blind-spot detection (BSD) with 4G dual-channel recording — reducing accidents and giving logistics operators real-time visibility across long-haul fleets.
Explore Fleet Management → -
Commercial Vehicles
YUNTOR commercial vehicle solutions bring together the full product line — 360° AVM, DMS/ADAS, BSD cameras and 4G recorders — into configurable safety packages for general commercial fleets, direct from a source factory.
Explore Commercial Vehicles →
X012 — buyer questions
What is the X012 used for?
The X012 USB reversing camera is part of the Infrared & Reversing Cameras range for commercial vehicles. It is built and tested by YUNTOR as a source factory.
What are the key specifications of the X012?
The X012 offers resolution 2.0M, frame rate 25 fps, lens 2.8mm, interface USB, voltage 12V ± 10%, night vision IR, verified from the official spec sheet. For the complete specification table, contact our engineer.
What is the MOQ for the X012?
Custom orders run at a low MOQ for OEM/ODM, with private branding available on our self-developed hardware — contact our engineer for current terms.
How fast is prototyping and delivery for the X012?
Lead times depend on configuration and current production load — our engineer confirms a schedule when you send your specifications.
Is the X012 covered by warranty?
Every unit carries a replacement warranty, with faulty units replaced directly. Contact us for current warranty terms.
